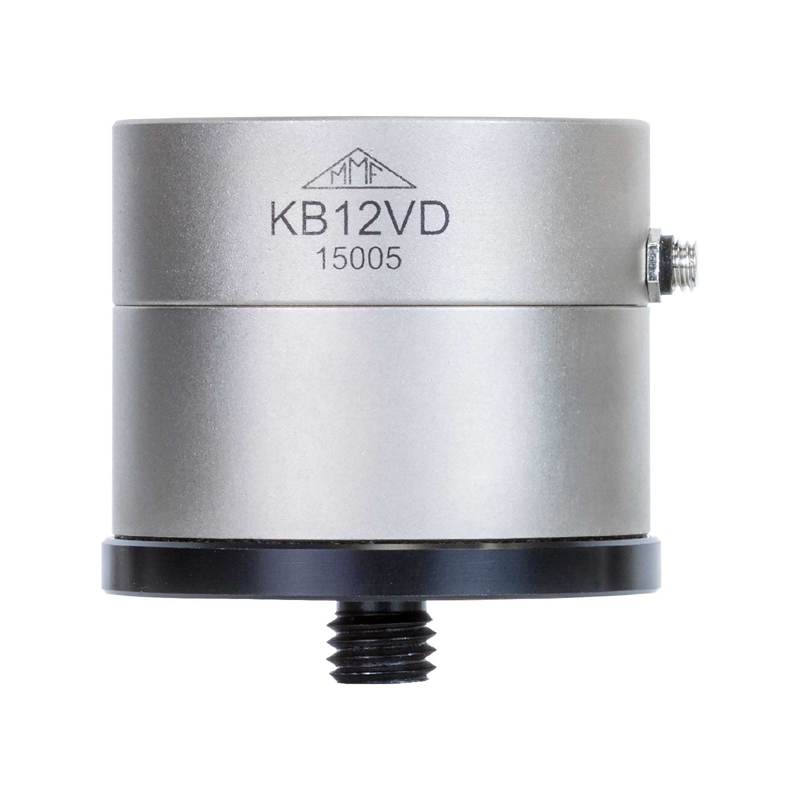

KB12VD

High Sensitivity Accelerometer

Due to its high sensitivity, this piezoelectric accelerometer is particularly suitable for seismic investigations and the measurement of structural vibrations.

Typical applications include vibration monitoring on houses, towers, masts, dams, bridges, wind turbines, oil platforms and pipelines. Other applications are in the measurement of lowest vibrations on highly sensitive equipment.

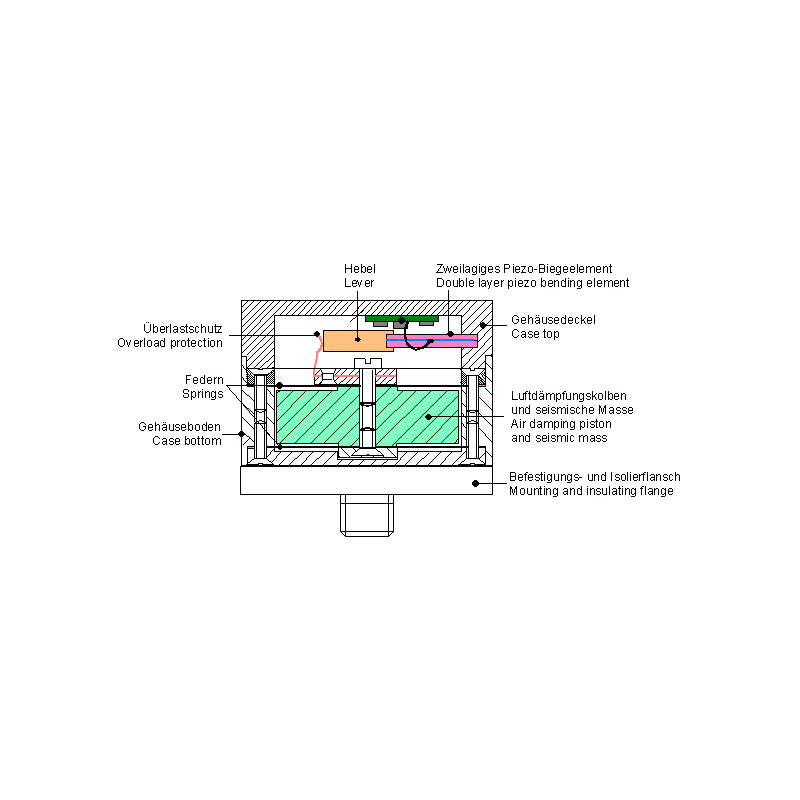

The high sensitivity is – in contrast to sensors of many other manufacturers – not achieved by internal amplification, but by a very sensitive sensor element. This results in extremely low noise and very good resolution.

Output

IEPE
Axes

uniaxial
Mass

150 g
Sensitivity

10000 mV/g
Measuring range

6 m/s²
Lower frequency limit (3 dB)

0.08 Hz
Upper frequency limit (3 dB)

0.26 kHz
Broadband resolution (RMS)

0.0015 mg
Connection

UNF 10-32, radial

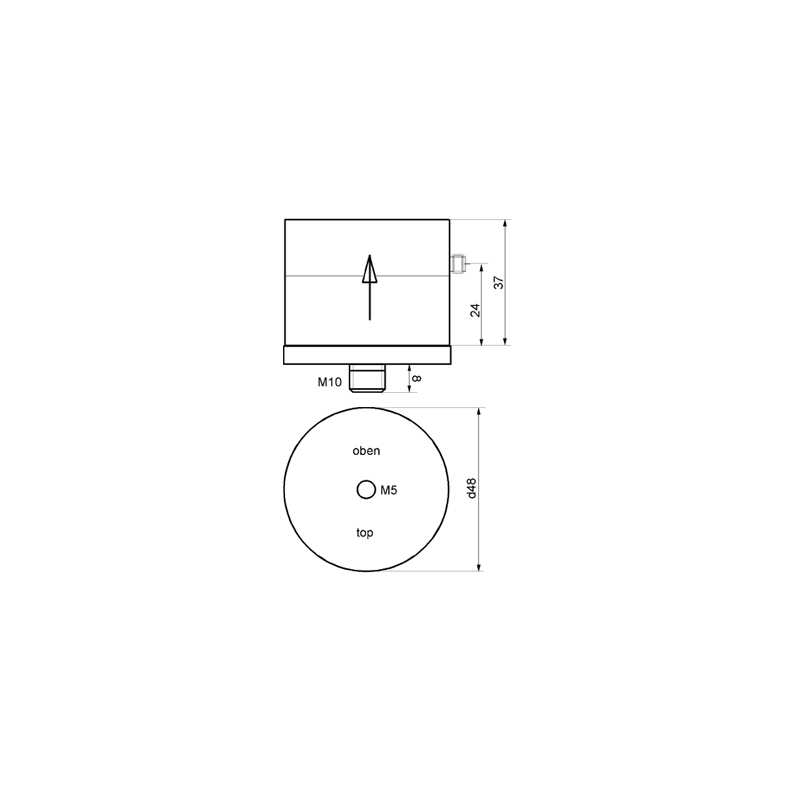

Mounting

M5 thread (female), M10 thread (male)
Operating temperature range

-20 .. 80 °C
Protection

isolated, IP60

KB12VD : without accessories

  • Sensor with calibration data sheet
  • 2 years warranty

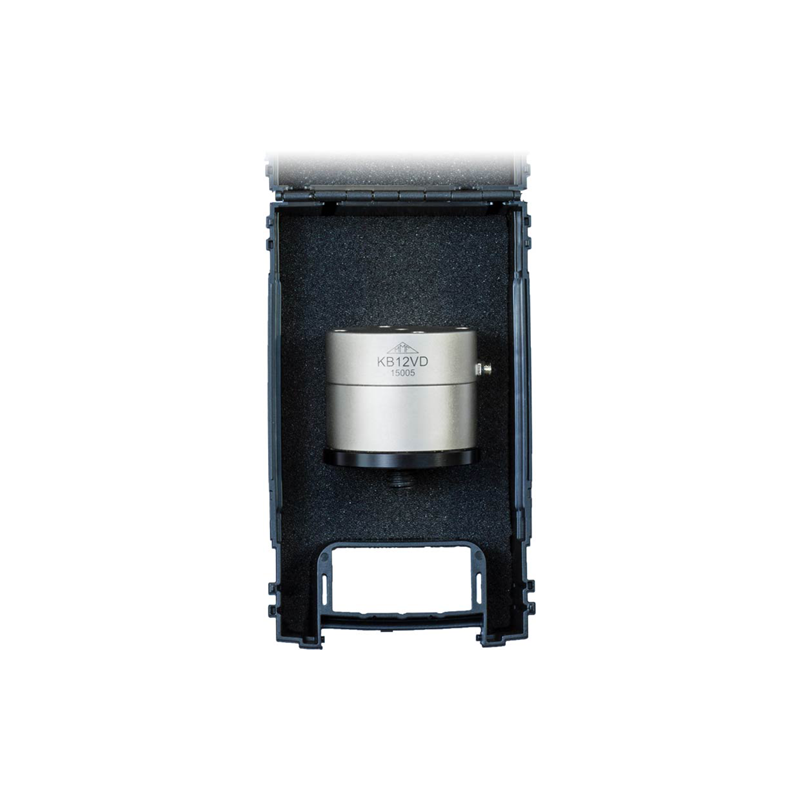

  • Case

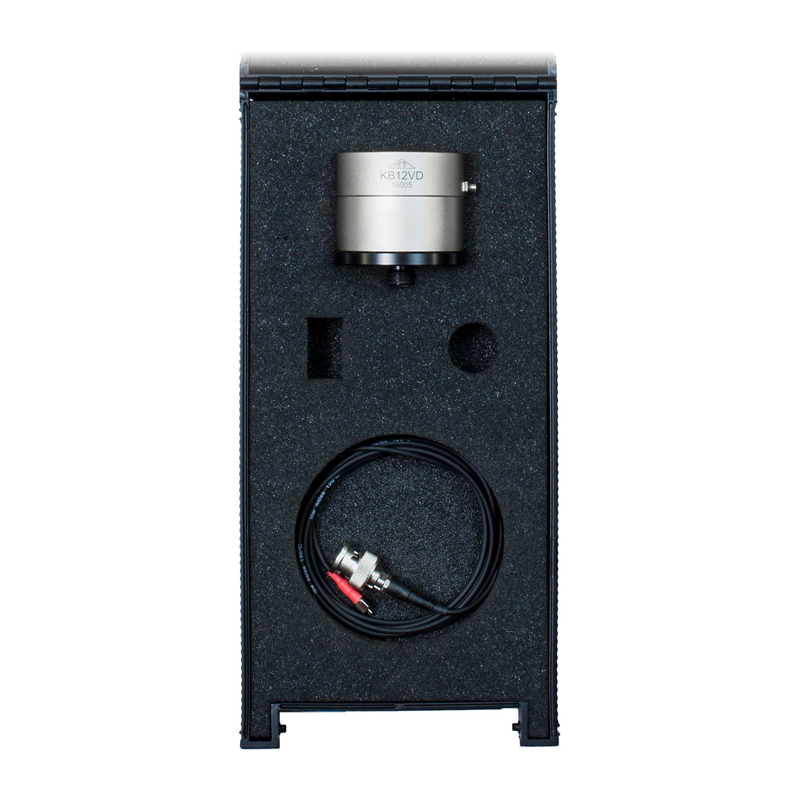

KB12VD /01: with accessories kit

  • Sensor with calibration data sheet
  • 009-UNF-BNC-1,5: Low-noise cablel; 1,5 m; 120 °C; Ø2,1
  • 2 years warranty
  • Case

PLEASE NOTE:

Calibration data sheets are not accredited reports and are therefore not covered by EA MLA (EA Multilateral Agreement)!

Downloads

Accessories for this product

  • 003

    Stud bolt M5 x 8

  • 008

    Rare-earth magnetic base, M5 (male)

  • 009-UNF-BNC-1,5

    Low-noise cable UNF 10-32 / BNC; 1,5 m

  • 009-UNF-UNF-1,5

    Low-noise cable UNF 10-32 / UNF 10-32; 1,5 m

  • 010-UNF-BNC-10

    Low-noise cable UNF 10-32 / BNC; 10 m

  • 010-UNF-BNC-5

    Low-noise cable UNF 10-32 / BNC; 5 m

  • 017

    Adapter UNF 10-32 (female) to BNC (male)

  • 045

    Stud adapter M5 (male) / UNF 10-32 (male)
    • Load more

    Related products

    KB12VD KS48C KS823B
    Output IEPE IEPE IEPE
    Axes uniaxial uniaxial triaxial
    Mass 150 g 165 g 365 g
    Sensitivity 10000 mV/g 1000 mV/g 500 mV/g
    Measuring range 6 m/s² 60 m/s² 120 m/s²
    Lower frequency limit (3 dB) 0.08 Hz 0.1 Hz 0.07 Hz
    Upper frequency limit (3 dB) 0.26 kHz 4 kHz 6 kHz
    Broadband resolution (RMS) 0.0015 mg 0.014 mg 0.026 mg
    Connection UNF 10-32, radial Binder 713 (M12), axial Binder 718 (M8), axial
    Mounting M5 thread (female), M10 thread (male) M8 thread (female) M8 thread (female)
    Operating temperature range -20 .. 80 °C -20 .. 120 °C -30 .. 90 °C
    Protection isolated, IP60 IP67 IP67
