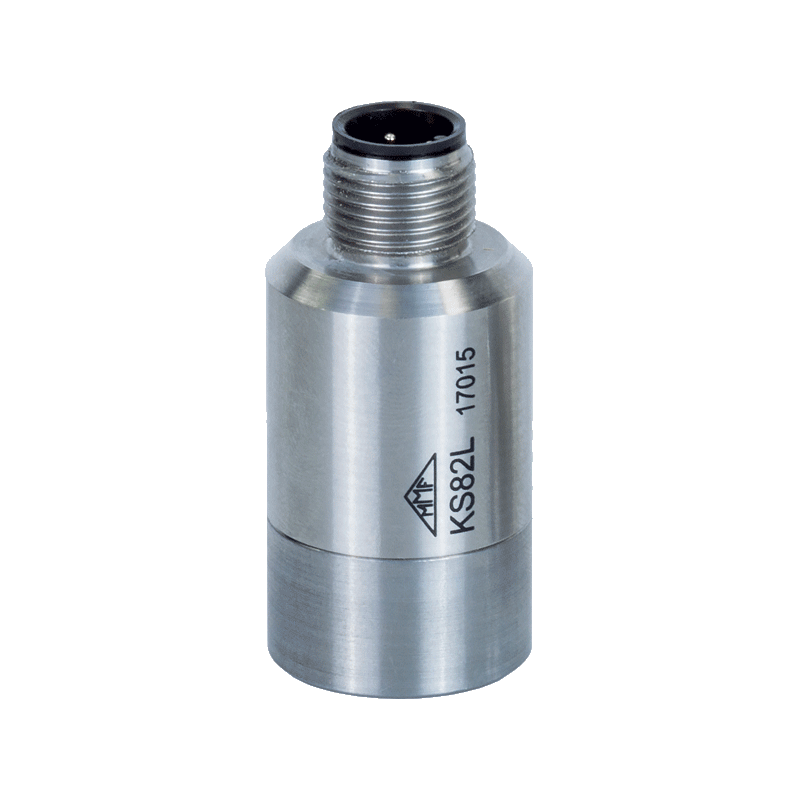

KS82L

VMID Accelerometer

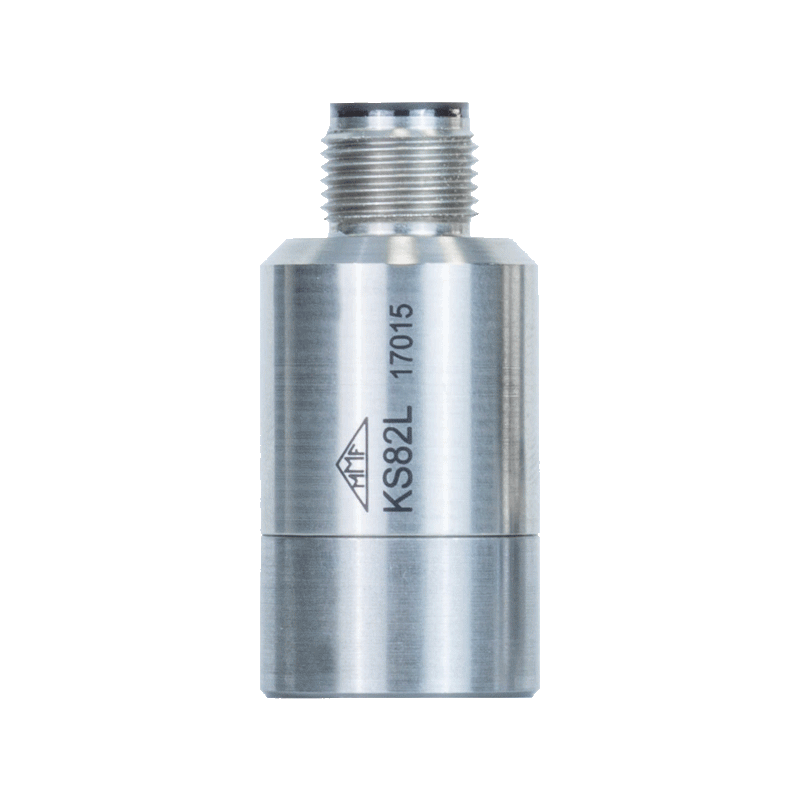

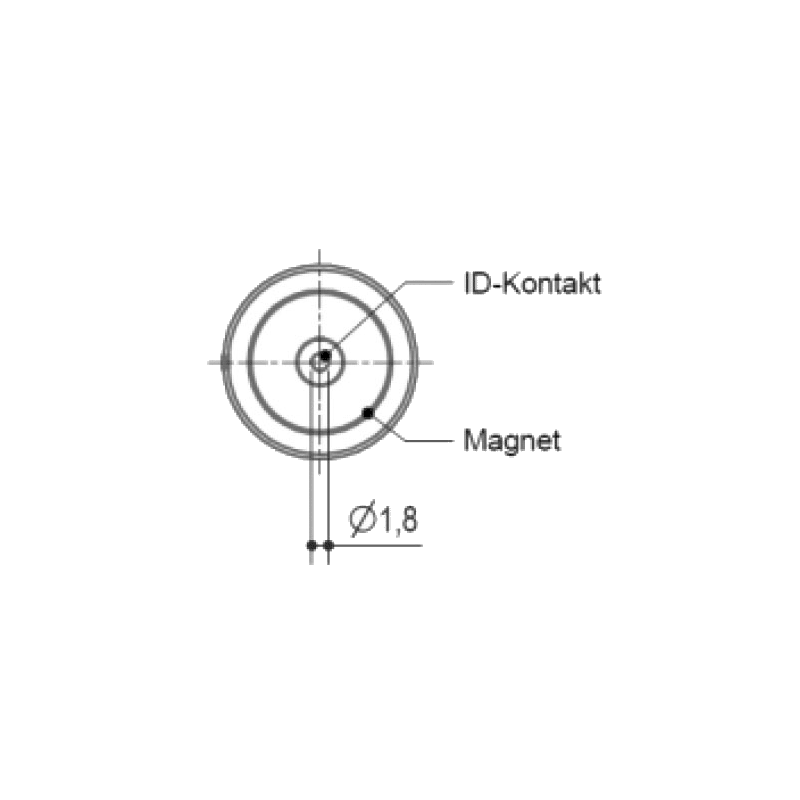

Rugged stainless steel case with integral magnetic base and reading contact for VMID measurement point data
Low-Power IEPE output for power-saving applications with battery-operated instruments, scope of delivery of vibration meters VM22, VM23, VM24 and VM25

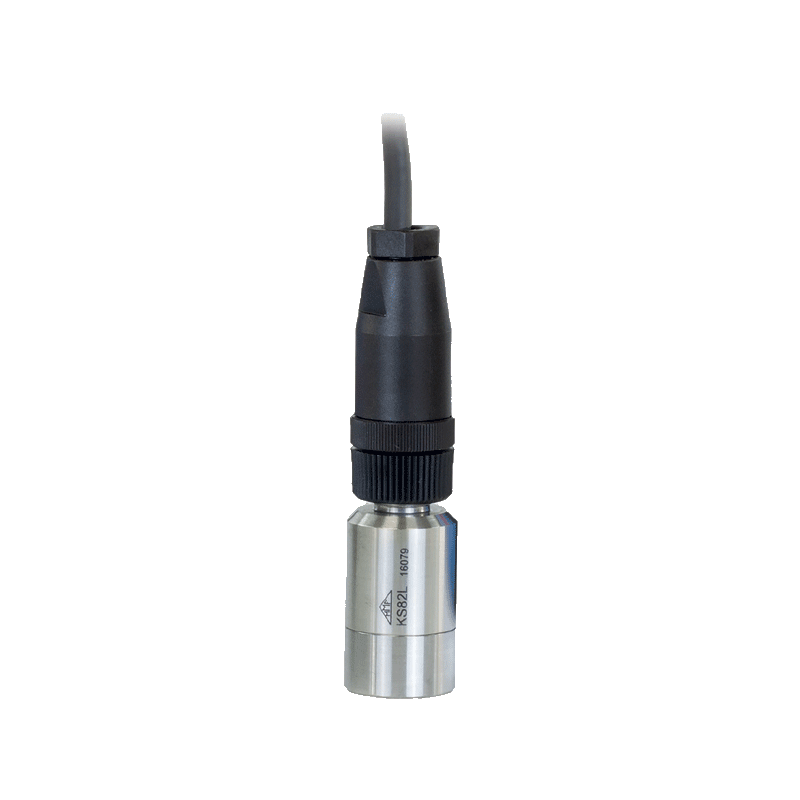

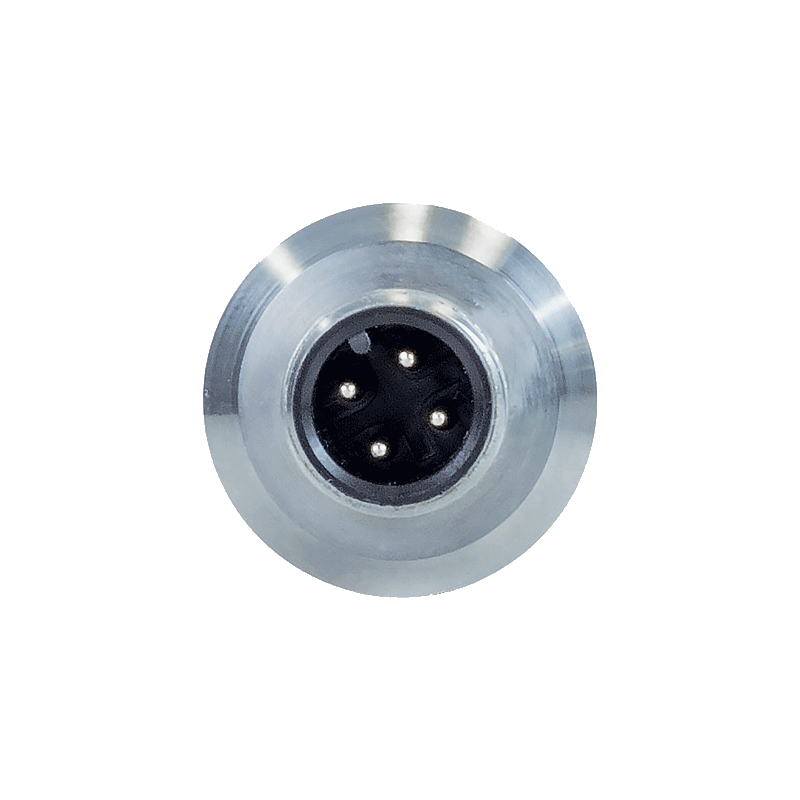

Robust M12 connector
Double-shielded housing for excellent EMC properties
IP67

Output	Low Power IEPE
Axes	uniaxial
Mass	54 g
Sensitivity	35 mV/g
Lower frequency limit (3 dB)	0.2 Hz
Upper frequency limit (3 dB)	14 kHz
Broadband resolution (RMS)	1 mg
Connection	Binder 713 (M12), axial

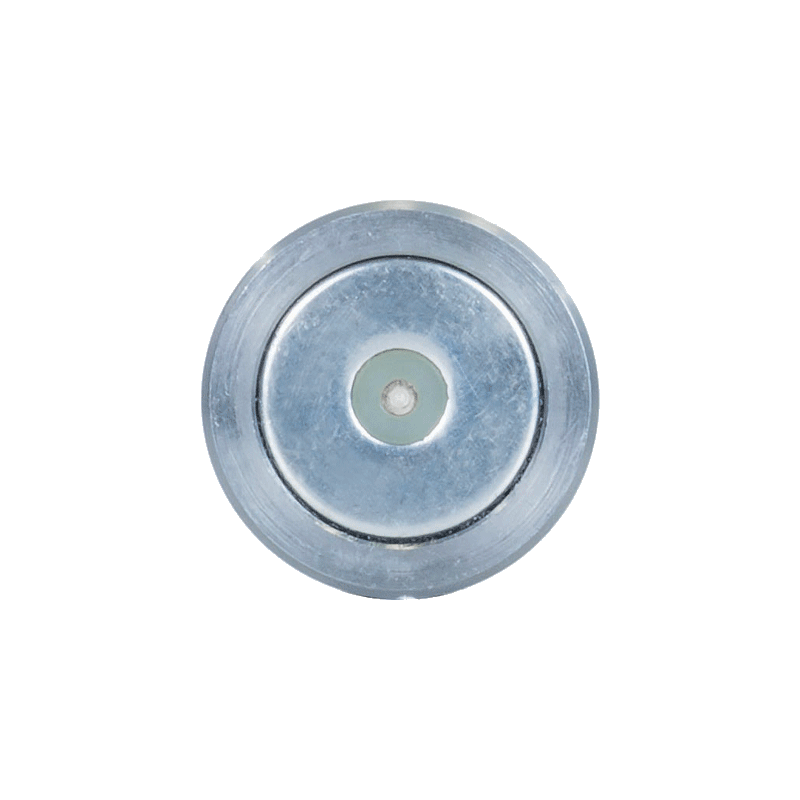

Mounting	Magnetic base
Operating temperature range	-40 .. 100 °C
Protection	IP67
