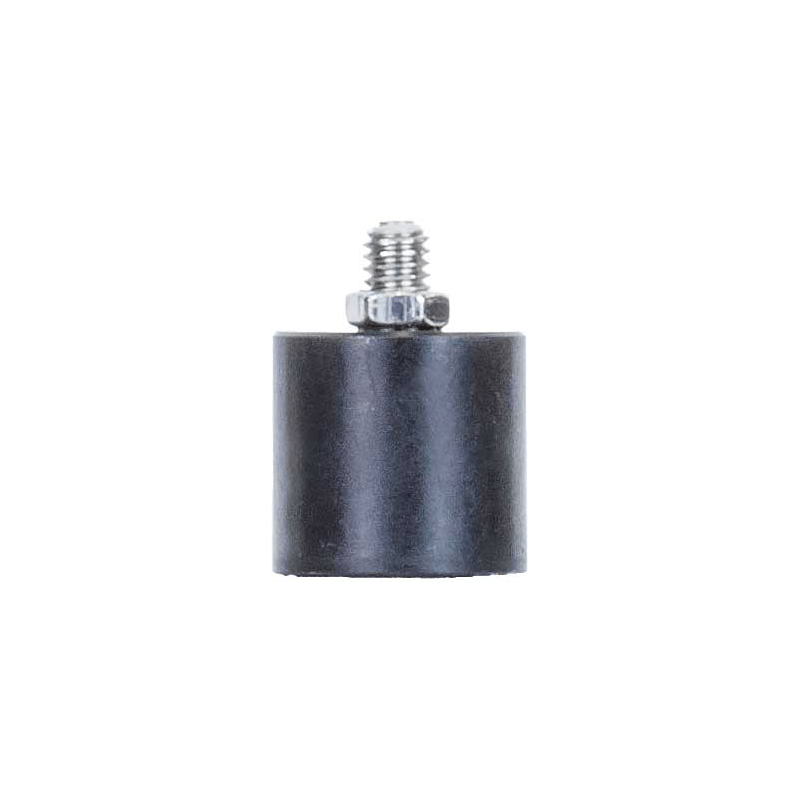

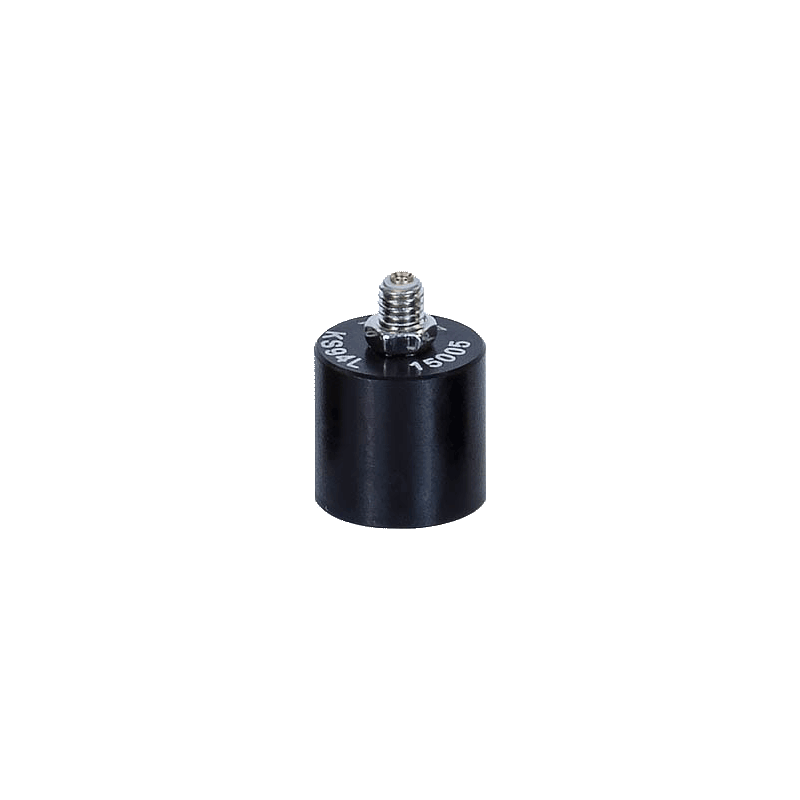

KS94L

Miniature Accelerometer

This piezoelectric accelerometer is suitable for lightweight measurement objects and for applications where small sensor dimensions are important.

Their high upper cutoff frequency is also advantageous.

The Low Power IEPE output reduces supply energy by up to 90%, making the sensor particularly suitable for battery-powered applications.

Output

Low Power IEPE
Axes

uniaxial
Mass

3.5 g
Sensitivity

14 mV/g
Measuring range

2400 m/s²
Lower frequency limit (3 dB)

0.3 Hz
Upper frequency limit (3 dB)

19 kHz
Broadband resolution (RMS)

1 mg
Connection

Subminiatur M3, axial

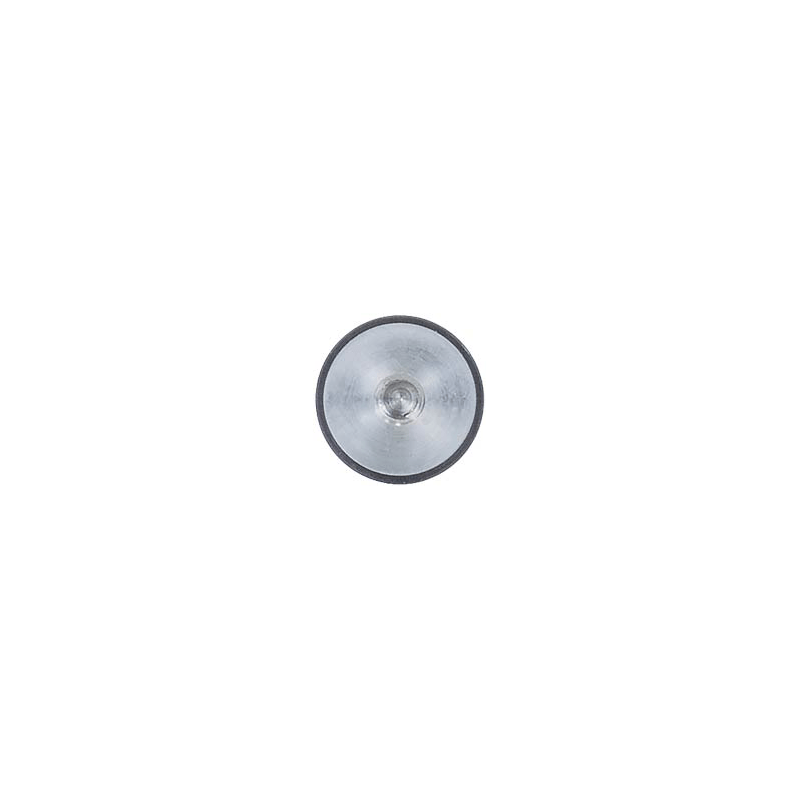

Mounting

M3 thread (female)
Operating temperature range

-20 .. 90 °C
Protection

IP60

KS94L : without accessories

  • Sensor with calibration data sheet
  • 2 years warranty
  • Case

KS94L /01: with accessories kit

  • Sensor with calibration data sheet
  • 009-SUB-BNC-1,5: Low-noise cable; 1,5 m; 120 °C; Ø2,1
  • 021: Stud bold; M3 x 6
  • 002: Adhesive wax
  • 106: Insulating flange; 2 x M3; Ø12; 110 °C
  • 129: Adhesive insulating; flange M3; Ø12; 110 °C
  • 108: Rare-earth magnetic base; M3; Ø10; 120 °C
  • 2 years warranty
  • Case

PLEASE NOTE:

Calibration data sheets are not accredited reports and are therefore not covered by EA MLA (EA Multilateral Agreement)!

Downloads

Accessories for this product

  • 002

    Adhesive wax

  • 009-SUB-BNC-1,5

    Low-Noise cable Subminiature/ BNC; 1.5 m

  • 009-SUB-UNF-1,5

    Low-noise cable Subminiature / UNF 10-32; 1,5 m

  • 009/T-SUB-UNF-1,5

    High-temperature Low-noise cable Subminiature / UNF 10-32; 1,5 m

  • 016

    Coupler 2 x UNF 10-32

  • 017

    Adapter UNF 10-32 (female) to BNC (male)

  • 021

    Stud bolt M3

  • 022

    Stud adapter M3 (fem.) / M5 (male)
    • Load more

    Related products

    KS94L KS94C10 KS94C100 KS96B10 KS96B100
    Output Low Power IEPE IEPE IEPE IEPE IEPE
    Axes uniaxial uniaxial uniaxial uniaxial uniaxial
    Mass 3.5 g 3.5 g 3.5 g 2.4 g 3.2 g
    Sensitivity 14 mV/g 10 mV/g 100 mV/g 10 mV/g 100 mV/g
    Measuring range 2400 m/s² 6000 m/s² 600 m/s² 5000 m/s² 600 m/s²
    Lower frequency limit (3 dB) 0.3 Hz 0.15 Hz 0.3 Hz 0.2 Hz 0.15 Hz
    Upper frequency limit (3 dB) 19 kHz 35 kHz 28 kHz 18 kHz 13 kHz
    Broadband resolution (RMS) 1 mg 3 mg 0.4 mg 3 mg 0.4 mg
    Connection Subminiatur M3, axial Subminiatur M3, axial Subminiatur M3, axial UNF 10-32, axial UNF 10-32, axial
    Mounting M3 thread (female) M3 thread (female) M3 thread (female) M3 thread (female) M3 thread (female)
    Operating temperature range -20 .. 90 °C -40 .. 120 °C -40 .. 120 °C -40 .. 120 °C -40 .. 100 °C
    Protection IP60 IP60 IP60 IP60 IP60
    TEDS - - - yes yes
