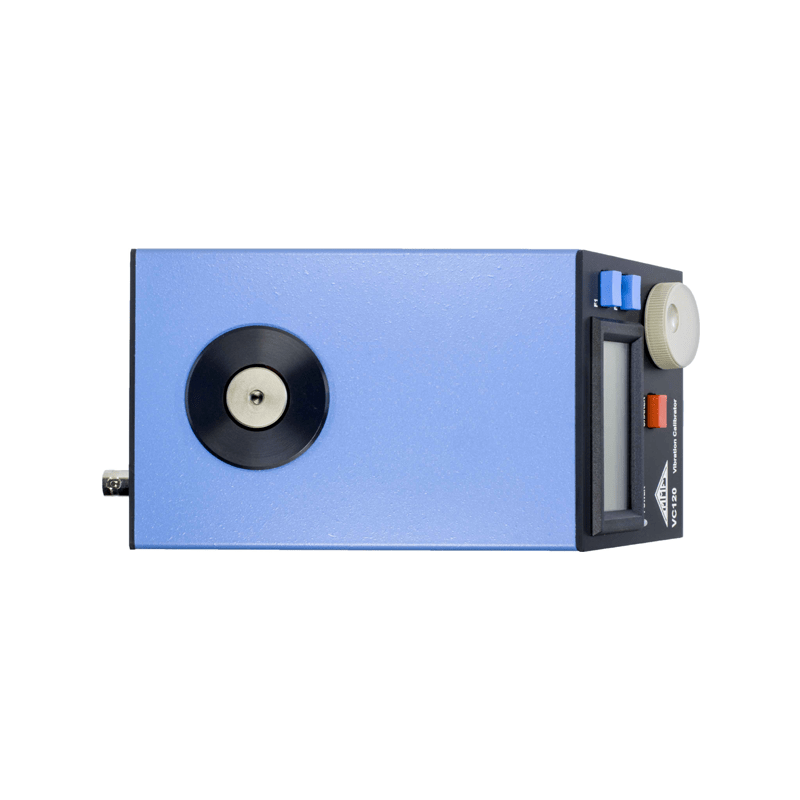

VC120
VC120 - Image 2

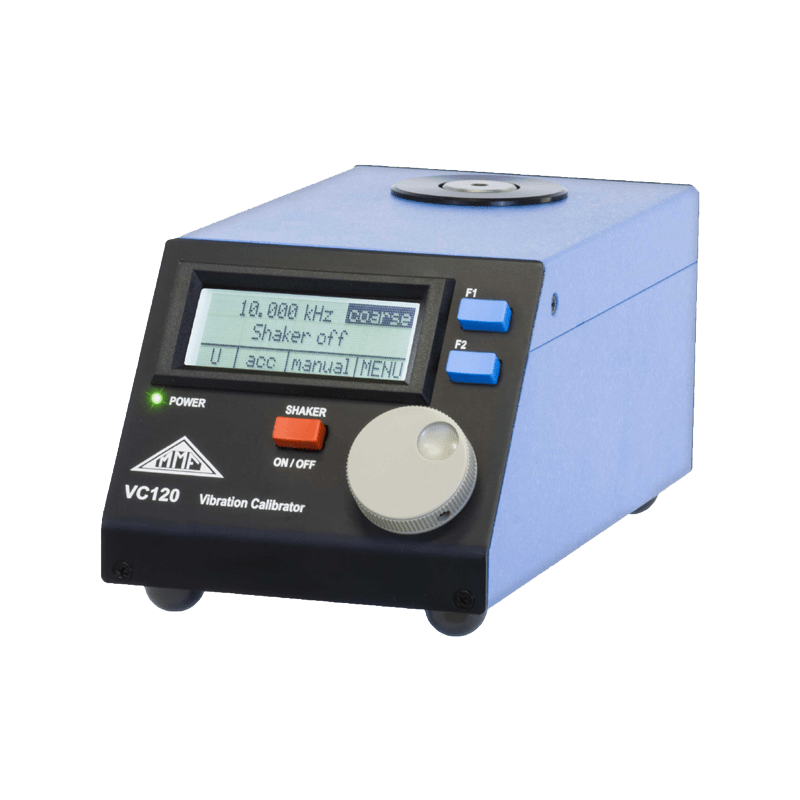

VC120 - Image 3

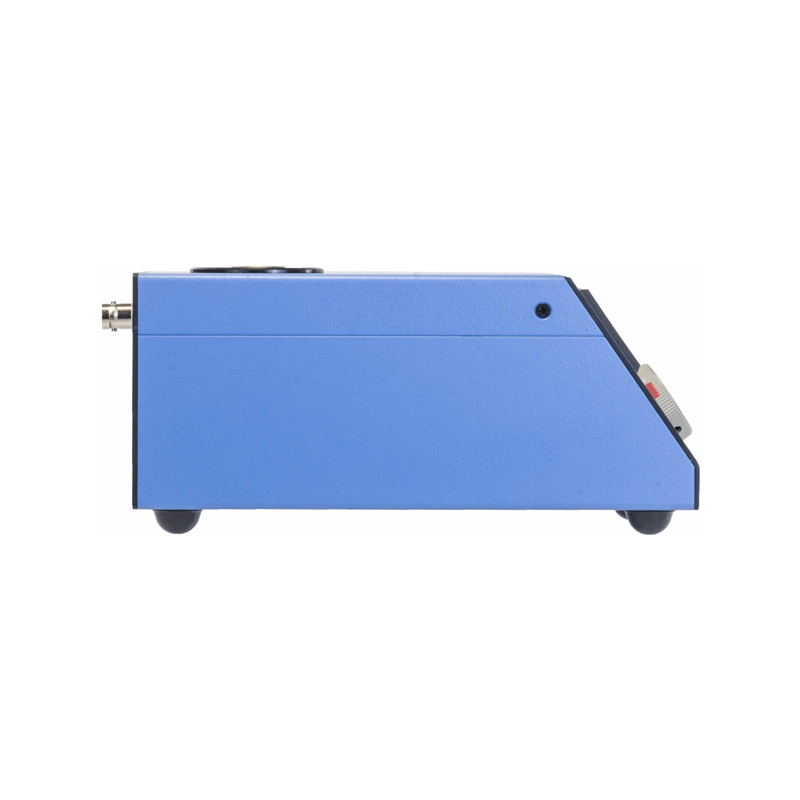

VC120 - Image 4

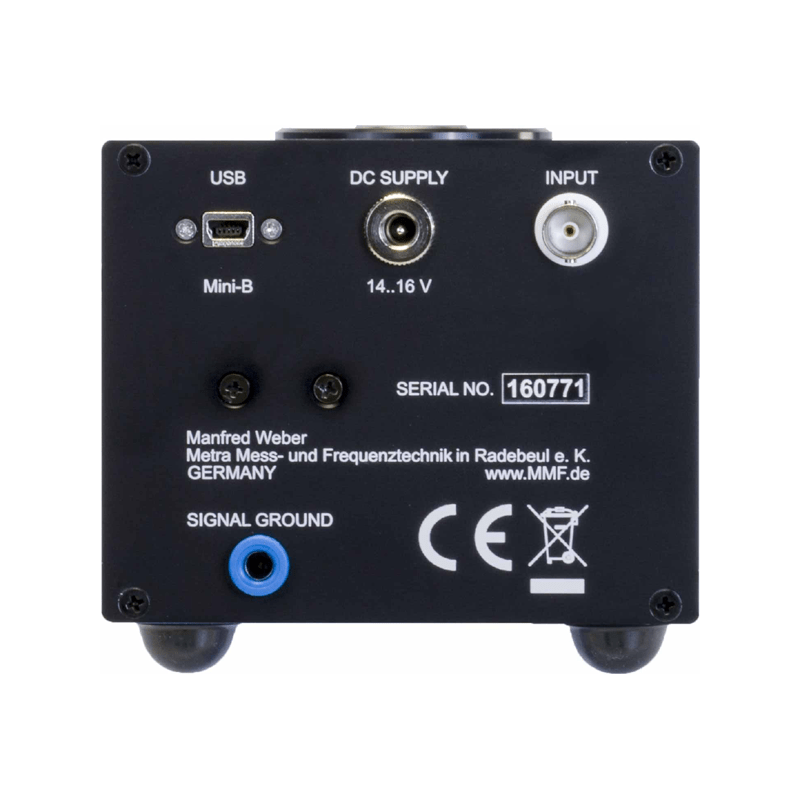

VC120 - Image 5

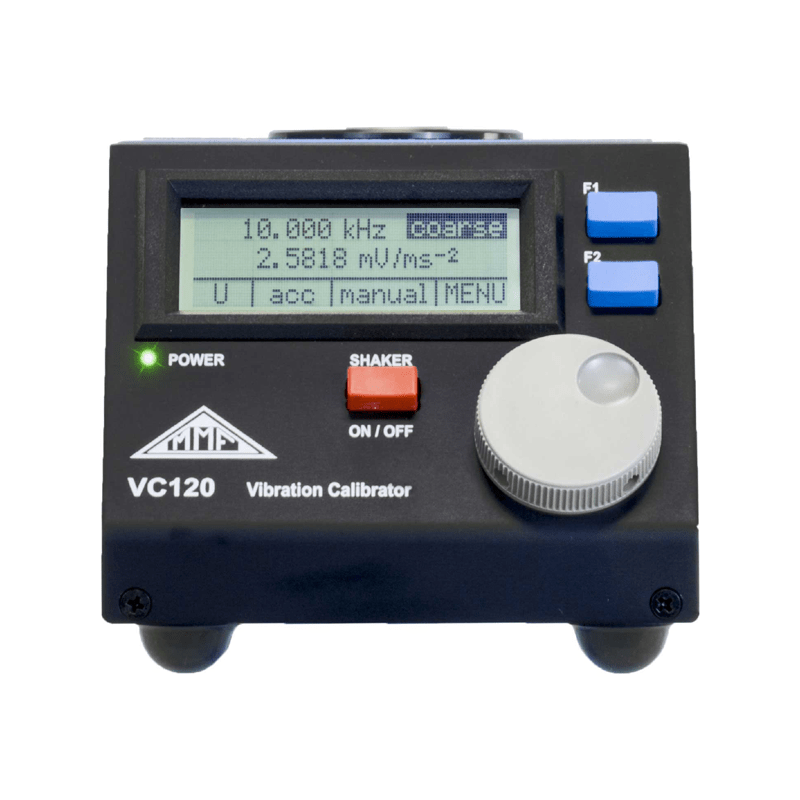

VC120 - Image 6

VC120

Vibration Calibrating System

  • Quick and easy calibration of vibration measurement systems
  • Load-independent vibration level
  • Integrated measuring channel with display of frequency and sensor sensitivity
  • Determination of frequency responses
  • Battery-powered for mobile use
  • Calibration software with database
Vibration amplitude

1 m/s²
Vibration frequency

70 .. 10 000 Hz (finely graduated)
Sensor mass (max.)

400 g
Connectable sensors

Charge, IEPE, voltage
  • VC120 with factory calibration certificate
  • Software license for PC software VC1xx
  • Thread adapter M3 / M5 / M8 / 1/4″-28 / UNF 10-32
  • Adapter BNC/UNF 10-32, Typ 017
  • Silicone grease
  • Mains adapter 100 – 240 VAC; 15 VDC
  • USB cable

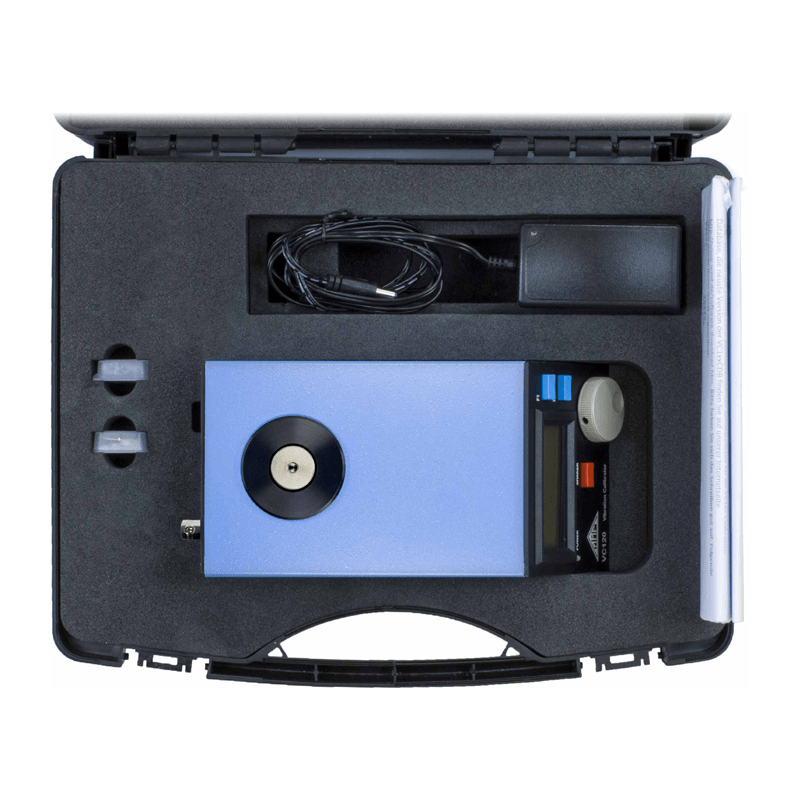

  • Transport case

PLEASE NOTE:

Factory calibration certificates are not accredited reports and are therefore not covered by EA MLA (EA Multilateral Agreement)!

Downloads
