KS963B100-S

Triaxial Seat Cushion Accelerometer with TEDS

Triaxial transducer in a rubber pads for measuring whole-body vibration according to ISO 2631, ISO 8041, ISO 10326-1 and ISO 7096.

The sensor can be removed from the cushion for calibration.

Contains an electronic data sheet (TEDS).

Output

IEPE
Axes

uniaxial
Mass

270 g
Sensitivity

100 mV/g
Measuring range

600 m/s²
Lower frequency limit (3 dB)

0.2 Hz
Upper frequency limit (3 dB)

1 kHz
Broadband resolution (RMS)

0.4 mg
Connection

2 m cable with Binder 711
Operating temperature range

-20 .. 80 °C
Protection

IP60
Mounting

Seat Cushion

KS963B100-S : without accessories

  • Sensor with calibration data sheet
  • 2 years warranty

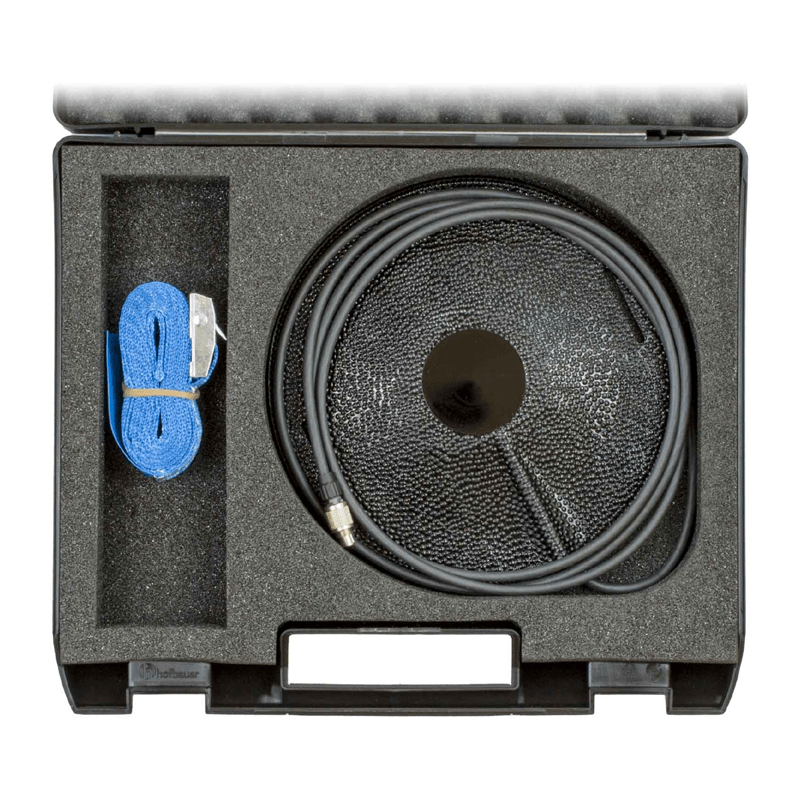

  • Case

KS963B100-S /01: with accessories kit

  • Sensor with calibration data sheet
  • 034-B711f-BNC: IEPE cable adapter; 0.5 m; Binder 711 / 3x BNC; 80 °C
  • 027: Calibration adapter for KS963B100-S
  • 2 years warranty
  • Case

PLEASE NOTE:

Calibration data sheets are not accredited reports and are therefore not covered by EA MLA (EA Multilateral Agreement)!
