Calibration Adapter for KS963/KS973

  • For calibrating the triaxial accelerometers KS963 / KS973 in the directions X/Y/Z.
  • M2,5 screws and tools for sensor mounting included.
  • M5 stud for mounting on vibration calibrators or shakers.
Sensor thread

M2,5 screw
Material

Stainless steel

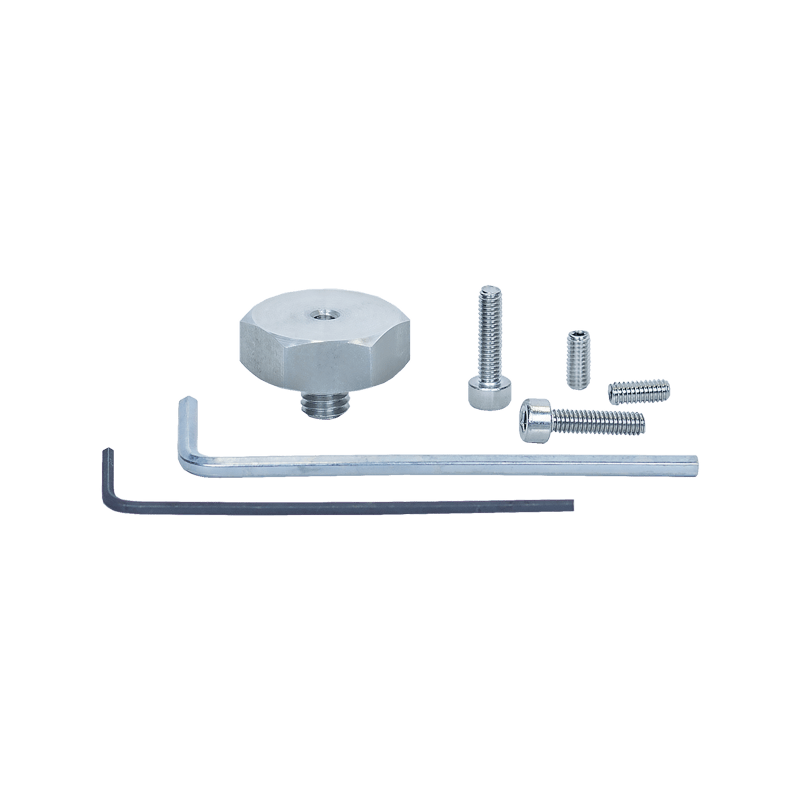

  • 1 Adapter 027
  • 2 Stud bold for sensor mounting (X/Y direction), DIN 913 M2.5×6 A1
  • 2 Screws for sensor mounting (Z-axis), DIN 912 M2.5×10 A2
  • 1 Hex key, DIN 911, 1.27 mm
  • 1 Hex key, DIN 911, 2 mm

Suitable products

  • KS963B10

    Low-noise cable

  • KS963B100

    Low-noise cable

  • KS963B100-S

    Triaxial Seat Cushion Accelerometer with TEDS

  • KS973.10

    Low-noise cable

  • KS973.100

    Low-noise cable

  • VC120

    Vibration Calibrating System

  • VC21

    Vibration Calibrator
