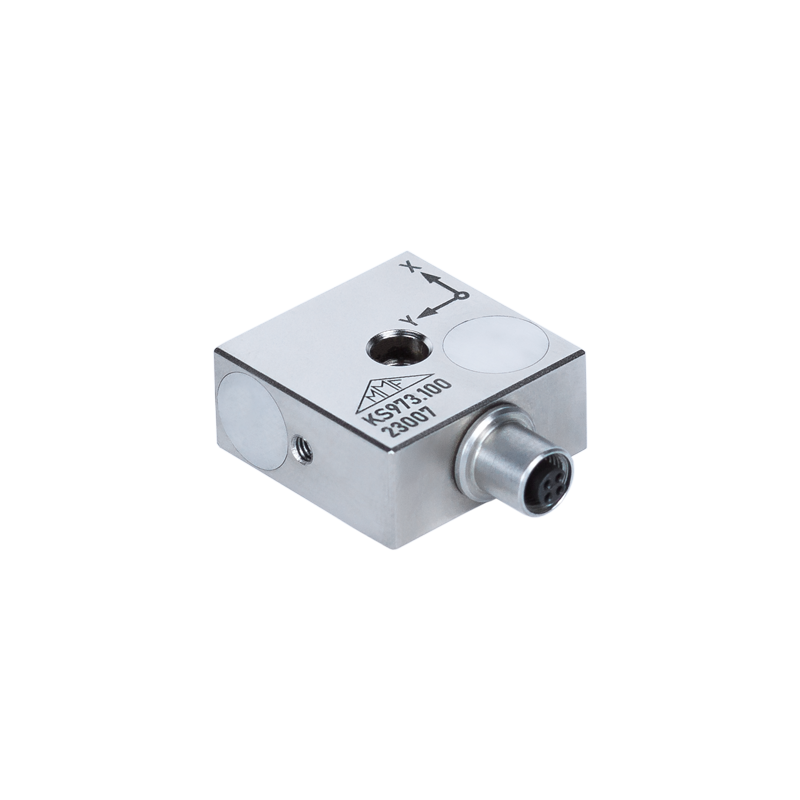

KS973.100

Low-noise cable

Triaxial accelerometer in flat design with through-hole for general applications and modal analysis with an protection rating of IP67.

Contains an electronic data sheet TEDS (interface with DS2431).

Output

IEPE
Axes

triaxial
Mass

15 g
Sensitivity

100 mV/g
Measuring range

600 m/s²
Lower frequency limit (3 dB)

0.15 Hz
Upper frequency limit (3 dB)

10 kHz
Broadband resolution (RMS)

0.4 mg
Connection

Binder 707 (M5)
Mounting

Through hole ø2.6, M3 thread (Z), M2.5 thread (X/Y)
Operating temperature range

-40 .. 100 °C
Protection

IP67
TEDS

yes

KS973.100 : without accessories

  • Sensor with calibration data sheet
  • 2 years warranty
  • Case

PLEASE NOTE:

Calibration data sheets are not accredited reports and are therefore not covered by EA MLA (EA Multilateral Agreement)!

Downloads

Accessories for this product

  • 027

    Calibration Adapter for KS963/KS973

  • 034-B711f-BNC

    IEPE cable adapter Binder 711, 4-pin, female to 3 x BNC, male.

  • 038

    Instant glue

  • 091-B707-B711-3

    IEPE cable for triaxial accelerometers with Binder 707 and Binder 711 connectors

  • 092-B707-B711-5

    IEPE cable for triaxial accelerometers with Binder 707 (IP67) and Binder 711 connectors

  • 308

    Rare-earth magnetic base, large, M3 (male)

  • 329

    Adhesive pad, insulating, large, M3 (male)

  • M208A

    8-channel IEPE amplifier
    • Load more

    Related products

    KS973.100 KS963B10 KS963B100 KS973.10
    Output IEPE IEPE IEPE IEPE
    Axes triaxial triaxial triaxial triaxial
    Mass 15 g 8.5 g 11 g 12.5 g
    Sensitivity 100 mV/g 10 mV/g 100 mV/g 10 mV/g
    Measuring range 600 m/s² 5000 m/s² 600 m/s² 5000 m/s²
    Lower frequency limit (3 dB) 0.15 Hz 0.2 Hz 0.15 Hz 0.2 Hz
    Upper frequency limit (3 dB) 10 kHz 18 kHz 10 kHz 18 kHz
    Broadband resolution (RMS) 0.4 mg 3 mg 0.4 mg 3 mg
    Connection Binder 707 (M5) 1/4-28 UNF, 4 pins 1/4-28 UNF, 4 pins Binder 707 (M5)
    Mounting Through hole ø2.6, M3 thread (Z), M2.5 thread (X/Y) Through hole ø2.6, M3 thread (Z), M2.5 thread (X/Y) Through hole ø2.6, M3 thread (Z), M2.5 thread (X/Y) Through hole ø2.6, M3 thread (Z), M2.5 thread (X/Y)
    Operating temperature range -40 .. 100 °C -40 .. 120 °C -40 .. 100 °C -40 .. 120 °C
    Protection IP67 IP60 IP60 IP67
    TEDS yes yes yes yes
